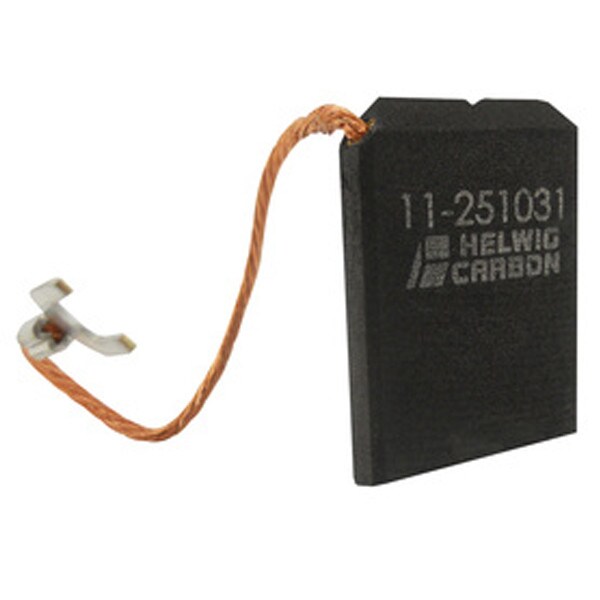

11-251031 Carbon Brush 0.25" x 1" x 1.5"
SKU: 11-251031
Grade: H41
$11.50
Quantity Pricing
| 8 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $11.50 | $9.77 | $9.18 |
in stock
FREE UPS GROUND SHIPPING!
Application: Fractional HP Brush, ElevatorMotor: Imperial
OEM P/N: 0901210, 1202, 1210, 25C3625P07
Style #:Q38
Brush Thickness:0.25"
Brush Width:1"
Brush Length:1.5"
Shunt Length:3.25"
Bevel:30/30
Terminal:Cap with ears to keep the cap from turning in the holder
Special:Concave Radius (inches) = 1
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Dover | Motor | 76884 | 13 | 240 | 47 | 1150 | 4 |
| Imperial | Generator | 284A | 7.5 | 240 | 31 | 1750 | 4 |
| Imperial | Motor | 286AY | 13 | 240 | 47 | 1150 | 4 |
