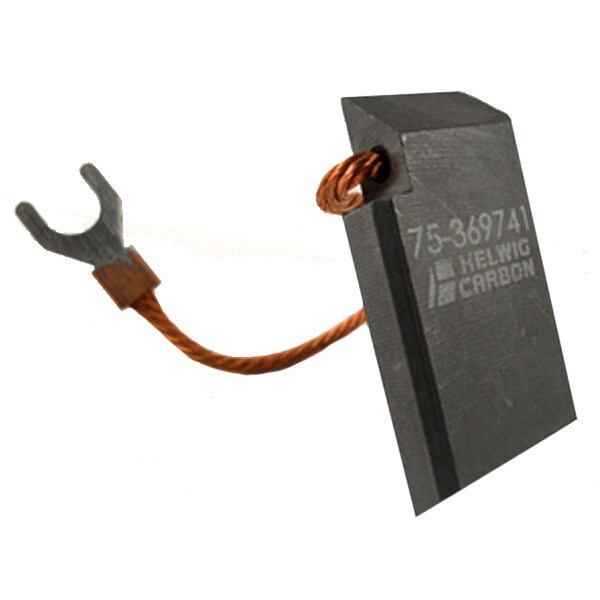

75-369741 Carbon Brush 0.36" x 0.985" x 2"
SKU: 75-369741
Grade: H619
$22.70
Quantity Pricing
| 4 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $22.70 | $19.29 | $18.17 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Elevator
Motor: Otis
OEM P/N: 240F26, 240F3
Motor: Otis
OEM P/N: 240F26, 240F3
Style #:Q41
Brush Thickness:0.36"
Brush Width:0.985"
Brush Length:2"
Shunt Length:5"
Bevel:40/30
Terminal:Hole Terminal 9/32
Special:Concave Radius (inches) = 3 Insulated Shunts
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Otis | Motor | 74D / 274437 | 51 | 260 | 146 | 106 | 18 |
| Otis | Motor | 77A / 274435 | 54 | 195 | 231 | 106 | 24 |
| Otis | Motor | 219HT / 301823 | 54 | 330 | 136 | 65 | 16 |
