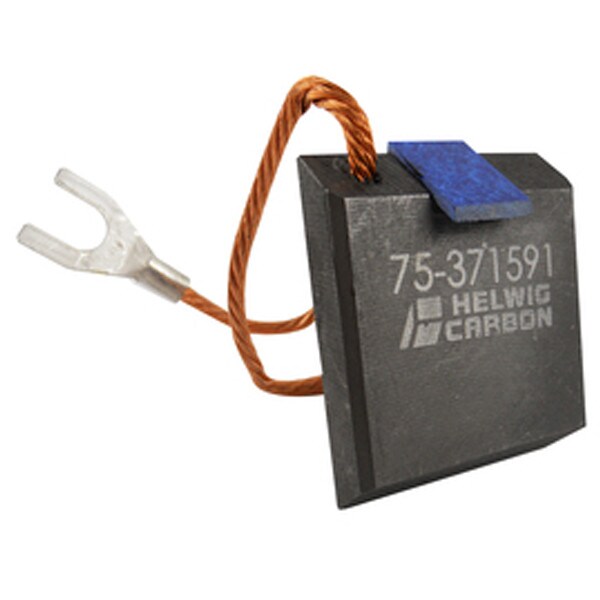

75-371591 Carbon Brush 0.375" x 1.5" x 1.75"
SKU: 75-371591
Grade: H619
$28.83
Quantity Pricing
| 4 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $28.83 | $24.51 | $23.10 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Elevator
Motor: Otis
OEM P/N: 240J1, 47334032, D29872, O774
Motor: Otis
OEM P/N: 240J1, 47334032, D29872, O774
Style #:Q85
Brush Thickness:0.375"
Brush Width:1.5"
Brush Length:1.75"
Shunt Length:5.75"
Bevel:40/30
Terminal:Slotted 6/32
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Otis | Motor | 77L | 15 | 165 | 75 | 886 | 8 |
| Otis | Motor | 77G / 311194 | 15 | 140 | 88 | 850 | 8 |
| Otis | Motor | 77L | 17 | 175 | 80 | 1800 | 8 |
| Otis | Motor | 77G | 20 | 160 | 108 | 800 | 8 |
| Otis | Motor | 77L | 20 | 175 | 95 | 1080 | 8 |
| Otis | Motor | 77L-22-2 | 20 | 165 | 101 | 1055 | 8 |
| Otis | Motor | 89F | 25 | 160 | 123 | 815 | 8 |
| Otis | Motor | 132HT | 32 | 135 | 177 | 129 | 12 |
| Otis | Exciter | 1EA | 5 | 120 | 42 | 1200 | 4 |
