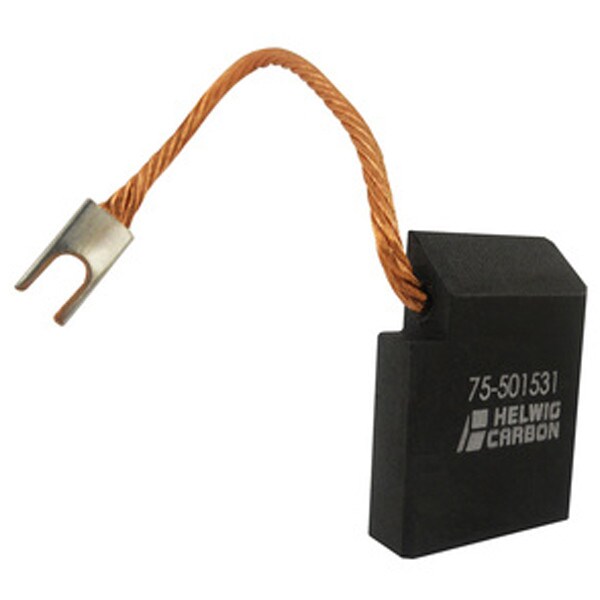

75-501531 Carbon Brush 0.5" x 1.5" x 2"
SKU: 75-501531
Grade: H41
$29.05
Quantity Pricing
| 4 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $29.05 | $24.69 | $23.24 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Elevator
Motor: Otis
OEM P/N: 240B1, 240B3, 240B3SV, 240R1, 347334037, 47334002, 47334037, O757, O776
Motor: Otis
OEM P/N: 240B1, 240B3, 240B3SV, 240R1, 347334037, 47334002, 47334037, O757, O776
Style #:Q42
Brush Thickness:0.5"
Brush Width:1.5"
Brush Length:2"
Shunt Length:5.5"
Bevel:40/0
Special:Concave Radius (inches) = 0.625
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Otis | Generator | 71GA / 300388 | 10 | 160 | 63 | 1800 | 8 |
| Otis | Generator | 82GA | 18 | 160 | 113 | 1800 | 8 |
| Otis | Generator | 2AMG | 20 | 185 | 108 | 1200 | 8 |
| Otis | Generator | 82GA | 22 | 190 | 116 | 1800 | 8 |
| Otis | Generator | 3BMG / 301624 | 45 | 350 | 129 | 1200 | 12 |
